Mobile Drainage, Power, and Lighting Pump Station

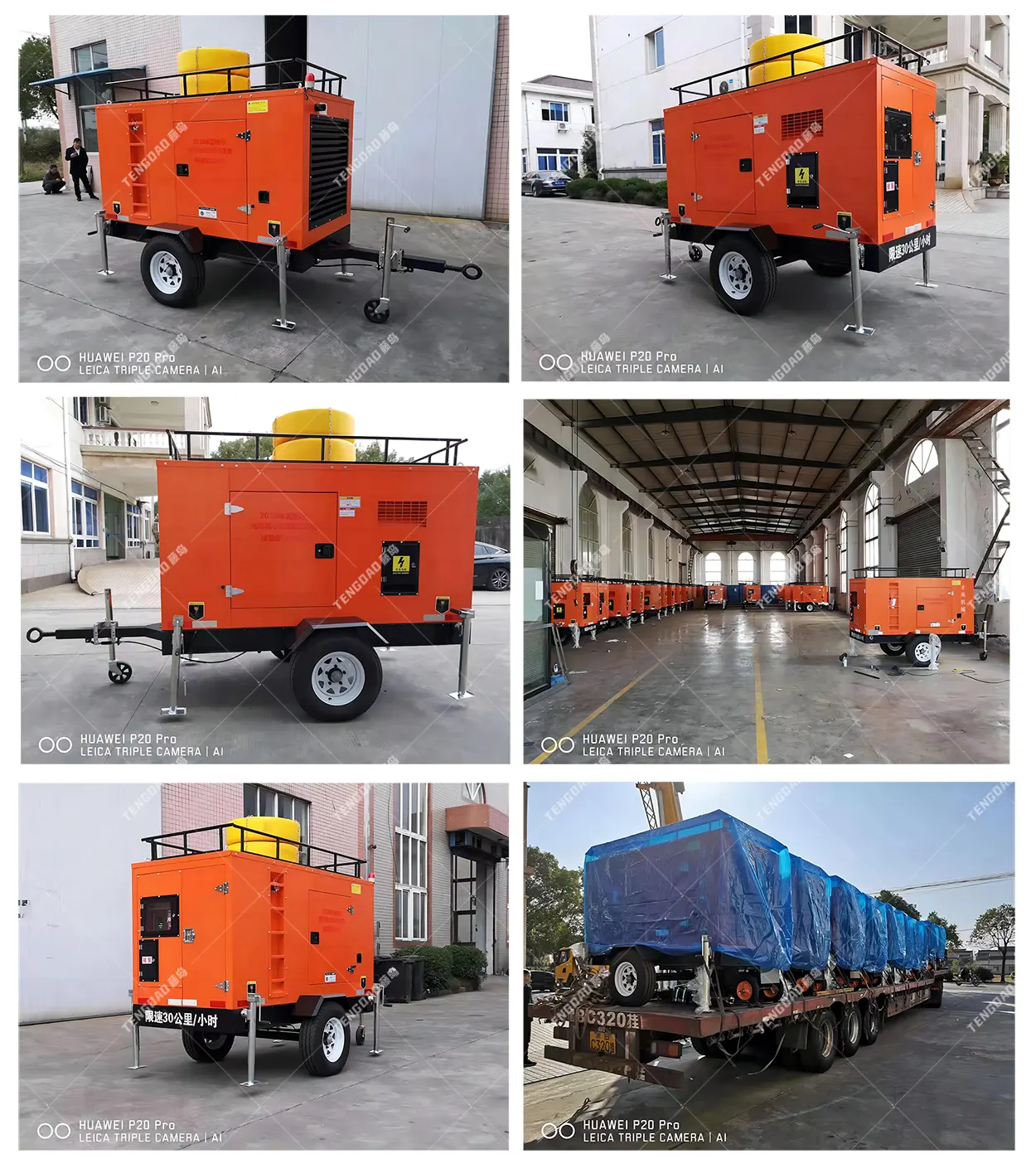

The mobile drainage pump station uses a box-type structure with a steel trailer chassis. It delivers a drainage capacity of 1000 m³/h. The equipment box houses the generator set, pump system, control system, and lighting system in separate sections. The trailer uses a single-axle design with two inflatable tires and four adjustable support legs. Its driving speed reaches 30 km/h or more.

The generator set provides at least 100 kW of engine power. It uses a pure copper, brushless alternator with a three-phase four-wire output. The rated voltage is 380V for three-phase and 220V for single-phase. Noise stays at or below 95 dB. The 150-liter fuel tank supports up to 12 hours of continuous work.

The pump delivers a flow rate of 1000 m³/h and a 12-meter head. Its efficiency reaches 55% or higher. The pump weighs 78 kg and runs at 2900 r/min. It uses a permanent-magnet synchronous motor with a 300 mm outlet. The insulation level is F, and the protection level is IP68. The cable connector meets IP67, and the 30-meter cable uses a waterproof quick-plug design. The impeller and diffuser use 304 stainless steel.

The control system features a portable cabinet with silent wheels and a handle. The interface is visual and includes leakage, overload, and over-temperature protection. A variable-frequency controller allows speed adjustment for the pump. The cabinet meets IP55 protection level.

The lighting system uses LED lamps with a total output of 300W (2×150W) and around 40,000 lumens. The light head rotates 360°, and the pneumatic mast reaches 1.8 meters. It meets IP65 protection level. The system supports wireless control up to 50 meters and manual operation for harsh environments.
